The 1800 Series features a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks.
FEATURES:
Lockwood lever 70
External plate with concealed fixing (screws included)
Lever only
Cylinder pitch 64mm
Fixing centres 148mm
Non-handed
PLATE DIMENSIONS:
Height: 166mm
Width: 48mm
Depth: 12mm

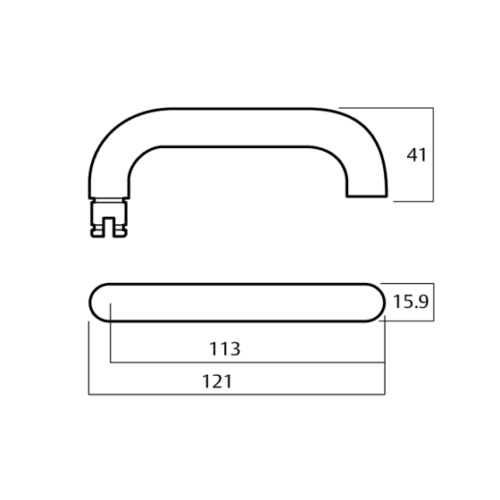

LEVER DIMENSIONS:
Length: 121mm
Projection: 53mm
Finger clearance: 37mm
When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.

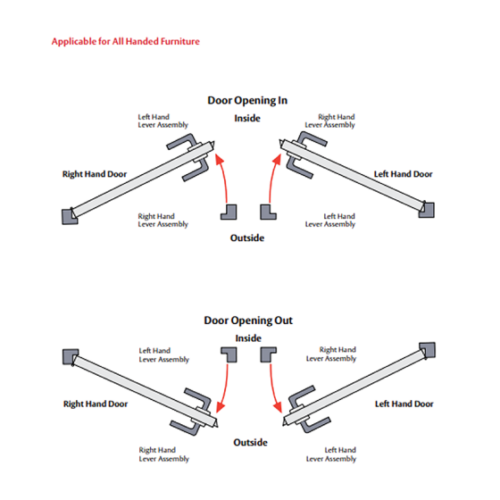

HANDING:
Symmetrical levers may be reversed by removing the stop screw.
FIXING:
Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 45mm.
FINISH:
Satin Chrome SC
