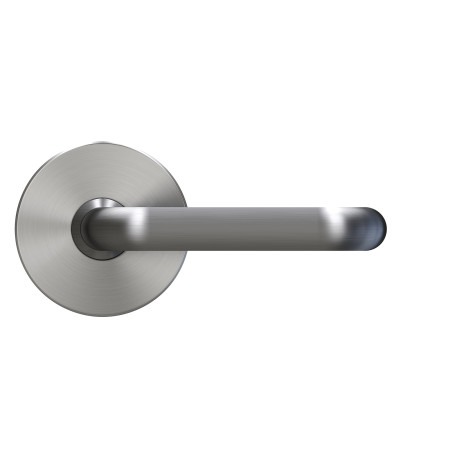

A high quality swing door lock featuring lever action and easy installation. Supplied with a polythene washer to fit between rose and door surface. Ideal for use on garage doors and other sheet metal cabinets.
FEATURES:
High purity zinc alloy lever handle and rose
8mm square steel spindle
Supplied with a polythene washer to seal between the door and handle
Spindle 8 mm square steel
108 mm projection from face of rose
Plated finish
includes 2 keys
Supplied in trade pack
DOOR THICKNESS:
Suitable door thicknesses can vary depending on the application and cam type. The lock is supplied with two 3/16inch x 2inch mounting screws.
CAM:
No cam is supplied with the 8474 Swing Lock. The lock has an 8mm x 8mm square drive that can be used with OEM cams.
SPECIAL KEYING:
Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication and can also include specially designed keying systems such as master key systems. This allows for different levels of mechanical access control.
FINISH:
Chrome Plate
