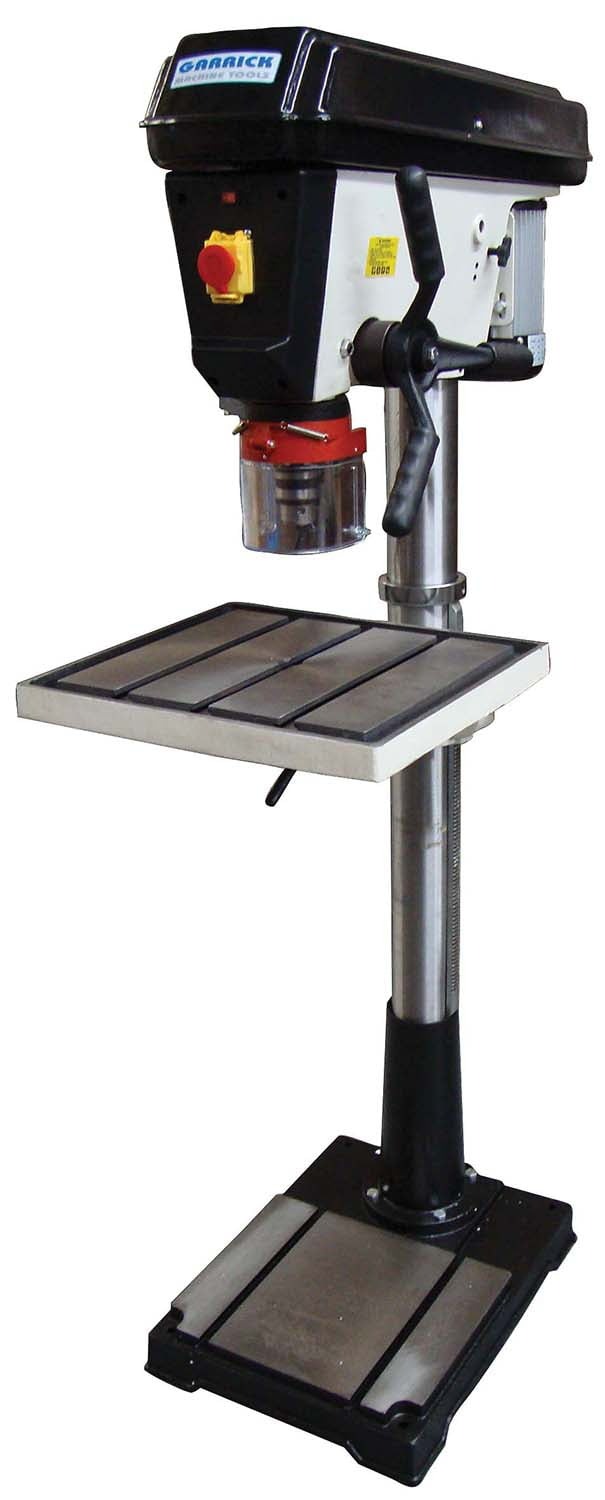

Garrick DP32 1100W Heavy Duty Pedestal Drill Press
INCLUDES:
Drill Chuck & Arbor
Chuck Key & Drill Drift
FEATURES:
Square tables for larger work area, with ‘T’ slots for solid clamping
Tables tilt and rotate
Solid one piece Cast Iron operating handles
Safety Guard with flip up cover over chuck as standard
Emergency stop switches
Heavy-duty precision depth stops
Quick action, positive motor adjustment for belt tensioning
Rack & pinion table height adjustment
Column & Quill precision machined from thick wall tube for rigidity
Work light under head (bulb not included for transport reasons)
Powerful 240V Aluminium TEFC motors
SPECIFICATIONS:
Motor: 1100W
Max Drilling Capacity: 32mm
Chuck Size: 3mm – 16mm
Swing: 508mm
Spindle Taper: MT4
Spindle Travel: 120mm
No. of Speeds: 12
Speed Range: 150rpm – 2700rpm
Overall Height: 1710mm
Column Diameter: 92mm
Quill Diameter: 72
Table Dimensions: 475mm x 425mm
Dimensions (L x W x H): 1475mm x 650mm x 350mm
Weight: 143kg
