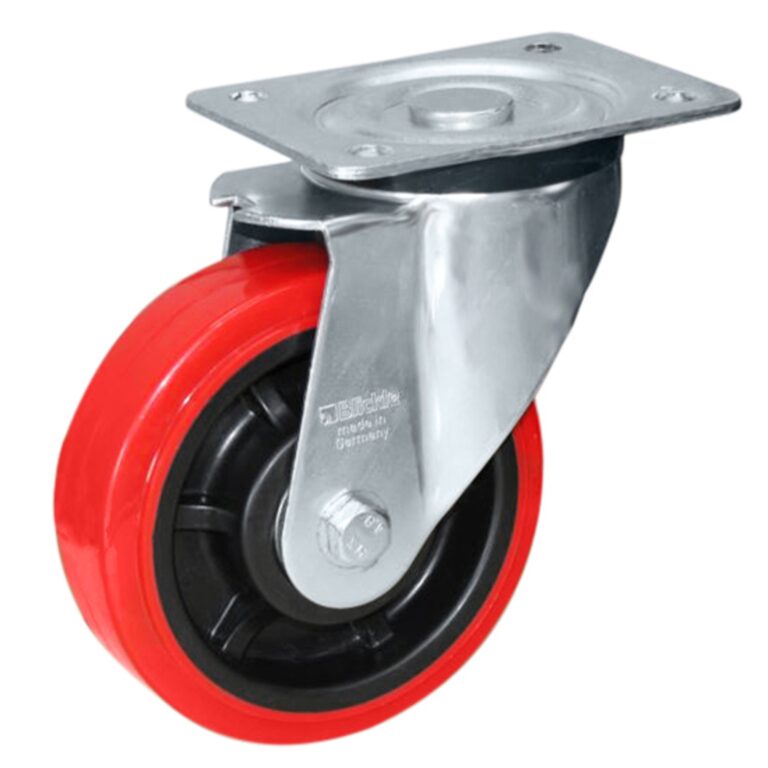

FEATURES:
Large head race with two rows of ball bearings and seal.
Choice of wheel types – Urethane on polypropylene or nylon.
Urethane wheels for hard wearing and non-marking qualities.
Weld-on mounting plate available to suit the “MH” series castors.
These castors are suited for medium to heavy warehouse and engineering requirements.
Urethane wheel has an excellent sealed ball bearing centre providing a smooth ride no matter the load.
SPECIFICATIONS:
Bearing: Ball Bearing
Load per Castor: 350kg
Castor Type: Swivel
Overall Height: 190mm
Bolt Hole Centres: 105mm x 80mm
Plate Size: 135mm x 105mm
Swivel Radius: 130mm
Wheel Diameter: 150mm
Wheel Type: Urethane
Wheel Width: 50mm
