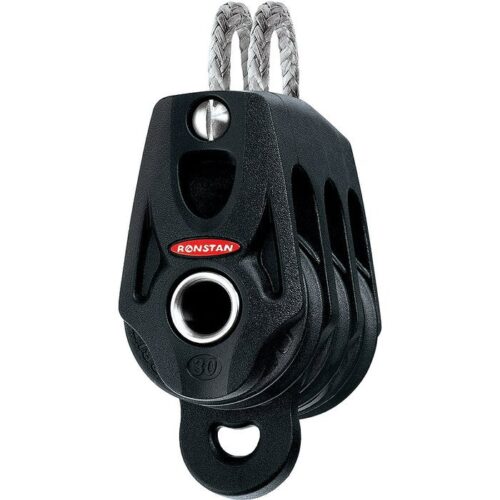

Series 30 Ball Bearing Orbit Block™, Triple with Becket
FEATURES:
Lightweight.
Highest working load in its class.
Secure, versatile attachment.
Ultra low profile thru-sheave becket.
Low friction 2-stage ball bearing system provides consistent performance over the full working load range.
SP versions feature a Nylatron® sheave suitable for both rope and wire.
SPECIFICATIONS:
B.L. (kg): 1100
M.W.L. (kg): 550
Max. Rope diameter (mm): 8
Weight (g): 79
Notes: Becket suits up to 6mm (1/4”) line. For lines above 6mm (1/4”) use an additional Dyneema® link (sold separately). Load on becket not to exceed 25% of block load. Suitable for 6:1 system at rated block load.
APPLICATIONS:
Mainsheet systems and spinnaker sheets on dinghies to 5m (16ft). Halyard, vang and backstay applications on boats to 5m (16ft). Control line applications on larger yachts.
MATERIALS:
Sheave: High compression strength carbon black Acetal.
Ball Bearings: High compression strength Acetal.
Frame/Cheeks: Toughened, glass fibre reinforced Nylon.
Link: UV stabilised, multi-strand impregnated SK75 Dyneema®
