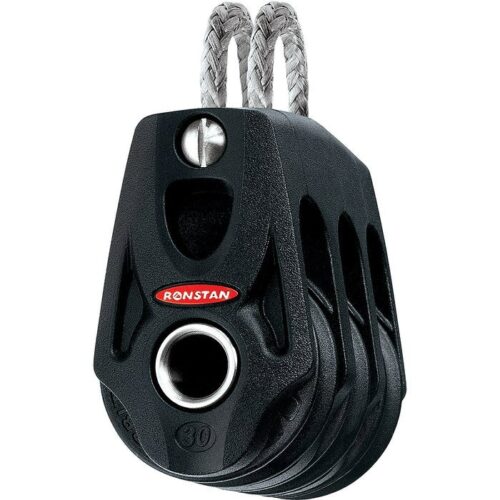

Triple sheave block with non-swivel shackle head.
FEATURES:
Lightweight.
Highest working load in its class.
Secure, versatile attachment.
Ultra low profile thru-sheave becket.
Low friction 2-stage ball bearing system provides consistent performance over the full working load range.
SP versions feature a Nylatron® sheave suitable for both rope and wire
SPECIFICATIONS:
B.L. (kg): 1100
M.W.L. (kg): 550
Max. Rope diameter (mm): 8
Weight (g): 79
Pin Ø (mm): 4
MATERIALS:
Sheave: High compression strength carbon black acetal.
Ball Bearings: High compression strength acetal.
Frame/Cheeks: Toughened, glass fibre reinforced nylon.
Link: UV stabilised, multi-strand impregnated SK75 Dyneema®.
