BALL JOINT 10/32UNF x 1/4UNF-STUD QUICK RELEASE

Enquiry

SKU: 16305 Categories: , ,
Brand:DOMETIC

    Connect 33, 43 and 63 series control Cables to throttle, gear or actuator linkage. Available in stainless steel or gold passivated steel. A spring loaded ball receptor provides quick release.

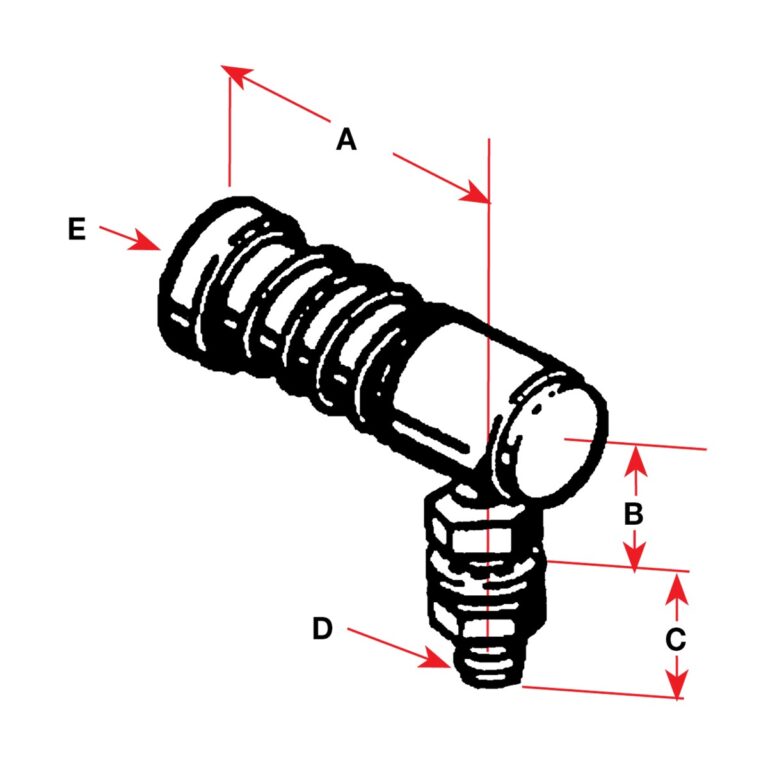

    SPECIFICATIONS:
    Material: Steel
    Cable Series: 30
    A = 23mm
    B = 12mm
    C = 14mm
    D (Thread) = 1/4″ UNF
    E (UNF) = 10-32
